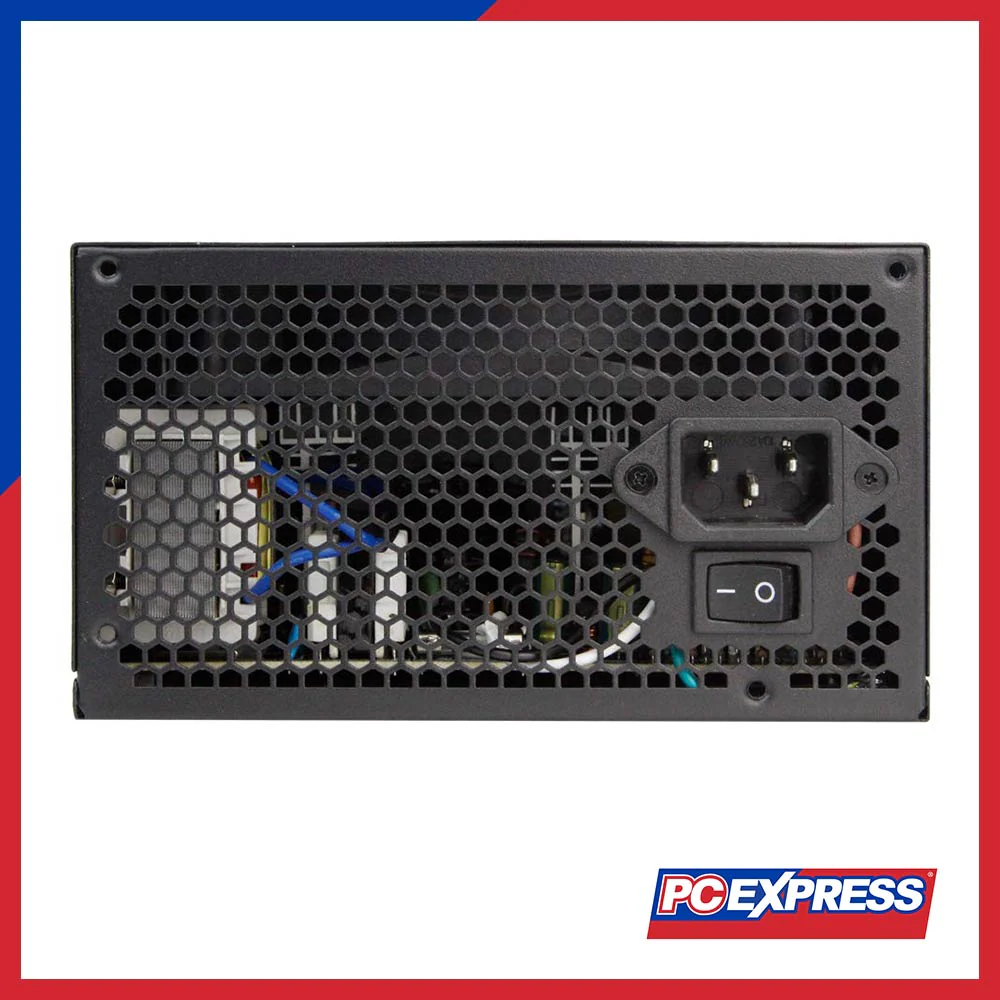

ANTEC ATOM B650 650W 80+ BRONZE Non-Modular True Rated Power Supply
SPECIFICATION
|
Brand |
Antec |
|
Series |
Atom |
|
Model |
Atom B650 |
|
Type |
ATX |
|
Maximum Power |
650W |
|
80 Plus Efficiency |
80 Plus Bronze |
|
Cables |
Non-Modular |
|
Connectors |
1x 24 Pin ATX |
|
1x 8 (4 + 4) Pin EPS12V |
|
|
2x 8 (6 + 2) Pin PCIe |
|
|
5x SATA |
|
|
3x Molex |
|
|
Power Input |
200-240VAC, 6.3A, 50Hz |
|
Power Output |
3.3V - 15A - 100W |
|
5V - 18A - 100W |
|
|
12V - 44.5A - 534W |
|
|
-12V - 0.3A - 3.6W |
|
|
5Vsb - 2.5A - 12.5W |
|
|
Protection |
OPP/OVP/UVP/SCP |
|
General |
Color: Black |
|
Features: CircuitShield, Thermal Manager, APFC (Active Power Factor Correction) |
|
|
Fan: 120 mm (Silent Fan) |
|
|
Product Dimensions: 140mm x 150mm x 86mm |
|
|
Package Contents |
1x Antec Atom B550 ATX Power Supply |
|
1x User Guide |
