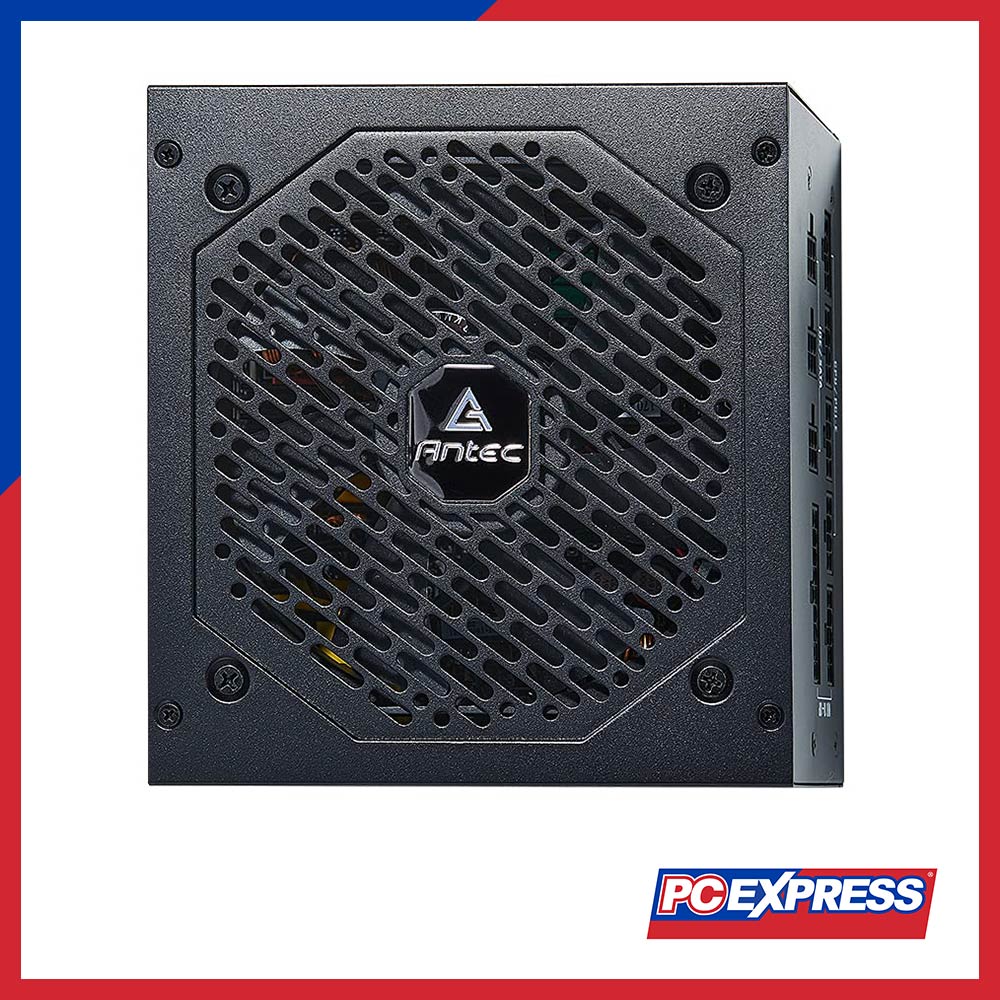

ANTEC NE 850GOLD M 850W 80+ GOLD Full Modular True Rated Power Supply
SPECIFICATION
|
Product Name |
NE850G M |
|
Model Name |
X7000A083-20 |
|
Type |
ATX 12V 2.4 |
|
Modular |
Fully |
|
Dimension |
150(L) x 140(W) x 86(H) mm |
|
Input Voltage |
100-240 VAC |
|
Input Current |
10A MAX |
|
Input Frequency Range |
50Hz-60Hz |
|
PFC |
Active PFC |
|
Power Good Signal |
100-500ms |
|
Efficiency |
Up To 92% |
|
Protection |
OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO |
|
Output Capacity |
850W |
|
Operation Temperature |
0~40°C |
|
Regulatory |
cTUVus / TUV / CB / RCM / CE / FCC / BIS / |
|
BSMI / KC / UKCA / ICES |
|
|
Fan |
120mm Silence Fan |
|
Certifications |
80 Plus Gold |
|
Connector |
1 x MB 24(20+4) Pin |
|
2 x 8(4+4) Pin EPS 12V |
|
|
6 x 8(6+2) Pin PCI-E |
|
|
10 x SATA |
|
|
5 x Molex |
|
|
1 x FDD |
|
|
Net Weight |
1.38 kgs |
|
Gross Weight |
2.55 kgs |
|
UPC# |
0-761345-11761-6 NE850G M |
|
0-761345-11762-3 NE850G M AU |
|
|
0-761345-11763-0 NE850G M EC |
|
|
0-761345-11764-7 NE850G M GB |
|
|
0-761345-11765-4 NE850G M JP |
